Architectural Steel Tolerances: What’s Realistic On-Site vs On the Drawing
A steel detail can be dimensionally perfect on a drawing and still need to accommodate small variations when it reaches site. Architectural steel fabrication involves managing tolerances in the steel itself, fabrication, welding, installation and the surrounding building. Understanding the difference between drawing accuracy and real-world site conditions is essential when you want architectural steelwork to fit properly and look right when finished.
In this post:
1. The drawing is precise - but the building is not a CAD model
Architectural drawings are built around precise dimensions. A balustrade might be shown at a particular height, a steel frame may be dimensioned to fit between two walls or a staircase might be designed around exact floor-to-floor measurements.
That precision is important. But it does not mean every dimension on the finished building will exist to exactly the same measurement.
A building site is the result of many different processes and trades. Concrete can vary slightly from its intended position. Walls may not be perfectly straight or square. Floor levels can change by a few millimetres. Other materials have their own manufacturing tolerances. Even the steel itself has permissible variations before fabrication begins.
The practical question for a fabricator is therefore not simply:
“Can we make this to the drawing?”
It is:
“How do we make this accurately while allowing for the tolerances and conditions that exist when it is installed?”
That distinction becomes particularly important with architectural steel where relatively small variations can be visible.
2. What does “tolerance” mean in steel fabrication?
A tolerance is the permitted amount of variation from a specified dimension, position or geometry.
It does not mean that a fabricator is being careless or that dimensions do not matter. Quite the opposite. Tolerances exist because manufacturing and construction processes have physical limitations and because a practical building needs some capacity to accommodate those variations.
For structural steelwork in New Zealand, AS/NZS 5131 sets requirements for fabrication and erection, including dimensional and geometric tolerances. The standard distinguishes between essential tolerances, which are those required for the mechanical resistance and stability of the finished structure, and functional tolerances, which deal with matters such as fit-up and the finished result.
Steel Construction New Zealand's National Structural Steelwork Specification identifies Class 1 as the default functional tolerance class for general steelwork. Tighter Class 2 tolerances are available where the project requires them.
Worth noting what this does and doesn't cover. AS/NZS 5131 applies to structural steelwork - load-carrying members and components, whether that's a full frame or a single portal. It isn't the governing standard for balustrades, handrails, gates, screens or decorative steelwork, which are specified differently. If you're not sure which side of the line your project sits on, your engineer or fabricator should be able to tell you in a sentence.
The important point is that a tolerance is not a target.
If a component has a permitted tolerance of several millimetres, that does not mean the fabricator should aim for the edge of that tolerance. Good fabrication still means working as accurately as reasonably possible while understanding where adjustment may be needed during installation.
3. Where do variations come from?
There is rarely one single source of movement. Tolerances can accumulate through several stages.
The steel itself
Rolled steel sections and other steel products are manufactured to recognised dimensional tolerances. They can have small variations in straightness, thickness, width, length, camber or sweep.
These variations are normally accommodated as part of good fabrication practice rather than treated as defects.
Cutting and fabrication
Cutting, drilling, forming and assembly introduce their own dimensional considerations. The more components that are joined together, the more important it becomes to control the relationship between them.
This is especially relevant for custom architectural work where several components need to line up visually.
Welding and heat distortion
Welding introduces heat into the steel. As the weld cools, the material contracts. The amount and direction of movement depends on factors such as the size and location of the welds, the sequence of welding and the geometry of the assembly.
This is one reason experienced fabricators do not simply cut every component to a theoretical dimension and weld it together without considering how the assembly will behave.
Welding sequence, temporary restraint, preparation and fabrication technique all have a role in controlling distortion.
The building itself
This is often the biggest consideration once architectural steel reaches site.
A steel frame being installed between two walls is not being installed between two lines on a computer screen. It is being installed between actual walls that may have small variations in position, level, plumbness and squareness.
That is why accurate site measurement can be just as important as accurate workshop fabrication.
4. Why “perfectly to the drawing” can sometimes be the wrong goal
Imagine a steel feature designed to fit tightly between two existing walls.
If the drawing says the opening is 2,400 mm wide but the finished opening measures 2,396 mm at one point and 2,402 mm at another, fabricating a perfectly square 2,400 mm frame may not produce a good installation.
The drawing dimension has not necessarily been wrong. The site condition has simply developed differently from the theoretical geometry.
This is where fabrication experience matters.
Depending on the application, the solution might involve a site measure, an adjusted dimension, an installation allowance, an adjustable connection or a carefully considered detail that hides a small variation.
The objective is not to make excuses for inaccurate work. It is to make the finished installation accurate in relation to the building it is actually going into.

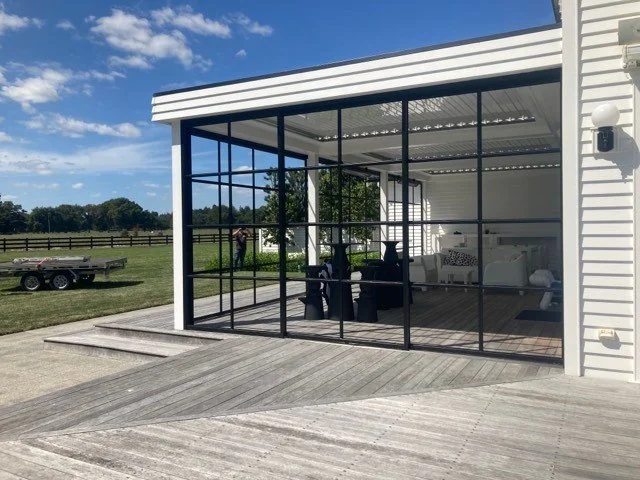

5. Architectural steel needs a different level of thinking
A structural steel beam hidden above a ceiling does not have the same visual requirements as a feature steel frame in a prominent architectural space.
With exposed architectural steel, small differences can be much more noticeable.
A line of balustrade posts that gradually drifts out of alignment can be obvious. A steel door frame that does not sit evenly within its opening can affect the finished appearance. A staircase that meets a floor or wall at an unexpected position can create problems for other finishes.
This is where architectural fabrication goes beyond simply meeting a nominal dimension.
The fabricator needs to consider:
how the steel will look when viewed as a finished element
how it interfaces with adjoining materials
where adjustment is possible
what dimensions are critical
which dimensions can accommodate a small variation
how the installation will actually be carried out
The drawing remains the starting point. It is not the whole picture.
6. Tolerance stack-up is a real site issue
One of the most important concepts for builders and architects is tolerance accumulation.
A single component might be within its permitted tolerance. Another component might also be within tolerance. The building element they connect to may have its own variation.
Individually, none of these differences may be significant. Together, they can create a noticeable problem.
This is recognised in structural steel practice. AISC guidance, for example, specifically discusses how individual mill, fabrication and erection tolerances can accumulate and lead to misalignment even where individual components are within their respective tolerances.
The same principle matters in architectural steel.
Consider a long balustrade running across several posts. Small positional variations at each connection can accumulate along the length. The final result may need to be managed through the detailing and installation rather than expecting every connection to land on an absolutely fixed theoretical point.
7. Site measuring is not just a box-ticking exercise
For custom architectural steel, site measuring can be one of the most valuable parts of the process.
A good site measure is an opportunity to confirm the actual conditions before fabrication is locked in.
Depending on the project, this can include checking:
finished floor levels
wall positions and openings
dimensions between finished surfaces
plumb and level
fixing locations
existing steelwork
access for installation
clashes with other building elements
For a new build, the right time to measure will depend on what is already complete and which dimensions are genuinely fixed.
For renovations, existing buildings can present even more variation. Walls, floors and openings that look straight may reveal different dimensions when measured carefully.
8. The best drawings allow for the realities of installation
Good architectural detailing does not attempt to eliminate every possible variation. It identifies which dimensions matter most and provides practical ways to accommodate the rest.
That might mean allowing clearance where appropriate, using adjustable fixing details or confirming critical dimensions closer to installation.
For exposed architectural steel, tighter tolerances may sometimes be appropriate. But tighter tolerances should be specified deliberately rather than assumed. Standards and industry guidance recognise that more restrictive tolerances can require additional fabrication and erection effort and may have cost implications. Read more about design decisions that increase steel fabrication complexity (and cost).
The earlier these requirements are discussed, the easier it is to achieve the intended result.
9. What should architects and builders discuss with the fabricator?
If a piece of steelwork is particularly sensitive to dimensions or alignment, it is worth identifying that before fabrication begins.
Useful questions include:
Which dimensions are critical?
For example, is the overall width critical or is the relationship between several visual lines more important?
What will the steel connect to?
Concrete, timber, plasterboard, glazing and existing steelwork all bring different site conditions.
Will the final surfaces be finished before measuring?
A few millimetres of flooring, plasterboard, tile or lining can make a significant difference where a steel element is designed to fit tightly.
Does the steel need adjustment during installation?
If so, the connection detail should allow for it rather than relying on site modification.
Are tighter-than-standard tolerances actually required?
If a project has a particular visual or functional requirement, it is better to define it clearly than assume the fabricator will interpret the drawing in the same way.
10. What good tolerance management looks like
For us, precision is not about claiming that every piece of steel can exist in the real world with zero deviation.
It is about understanding where accuracy matters, controlling what can be controlled and designing the fabrication and installation process around the conditions that actually exist.
That means accurate drawings, careful fabrication, practical detailing and good communication between the architect, builder, fabricator and other trades.
The best architectural steelwork is not simply the piece that was made accurately in the workshop.
It is the piece that arrives on site, fits the building, aligns with the surrounding finishes and looks like it belongs exactly where it was designed to be.
That is the difference between drawing accuracy and real-world precision.
