Design Decisions That Increase Steel Fabrication Complexity (and Cost)
Introduction
Steel fabrication pricing is rarely just about the amount of steel in a project. Design choices, tolerances, finishes, installation requirements and coordination between trades can all significantly affect fabrication complexity and cost. Understanding these factors early helps architects, builders and homeowners make informed decisions while protecting the quality and intent of the final result.
In Auckland’s residential and commercial construction market, the projects that achieve the best outcomes are usually those where design ambition is balanced with practical fabrication and installation considerations. Precision steelwork is entirely achievable - but some details require substantially more labour, coordination and specialist expertise than others.
In this post:
1. Why Some Steel Projects Cost More Than Others
When clients first receive a steel fabrication quote, the instinct is often to compare material quantities or square metre rates. In reality, material is only one part of the equation.
Much of the cost in custom steel fabrication comes from the time, skill and coordination required to transform drawings into finished architectural steelwork that fits perfectly on site.
This is especially true for:

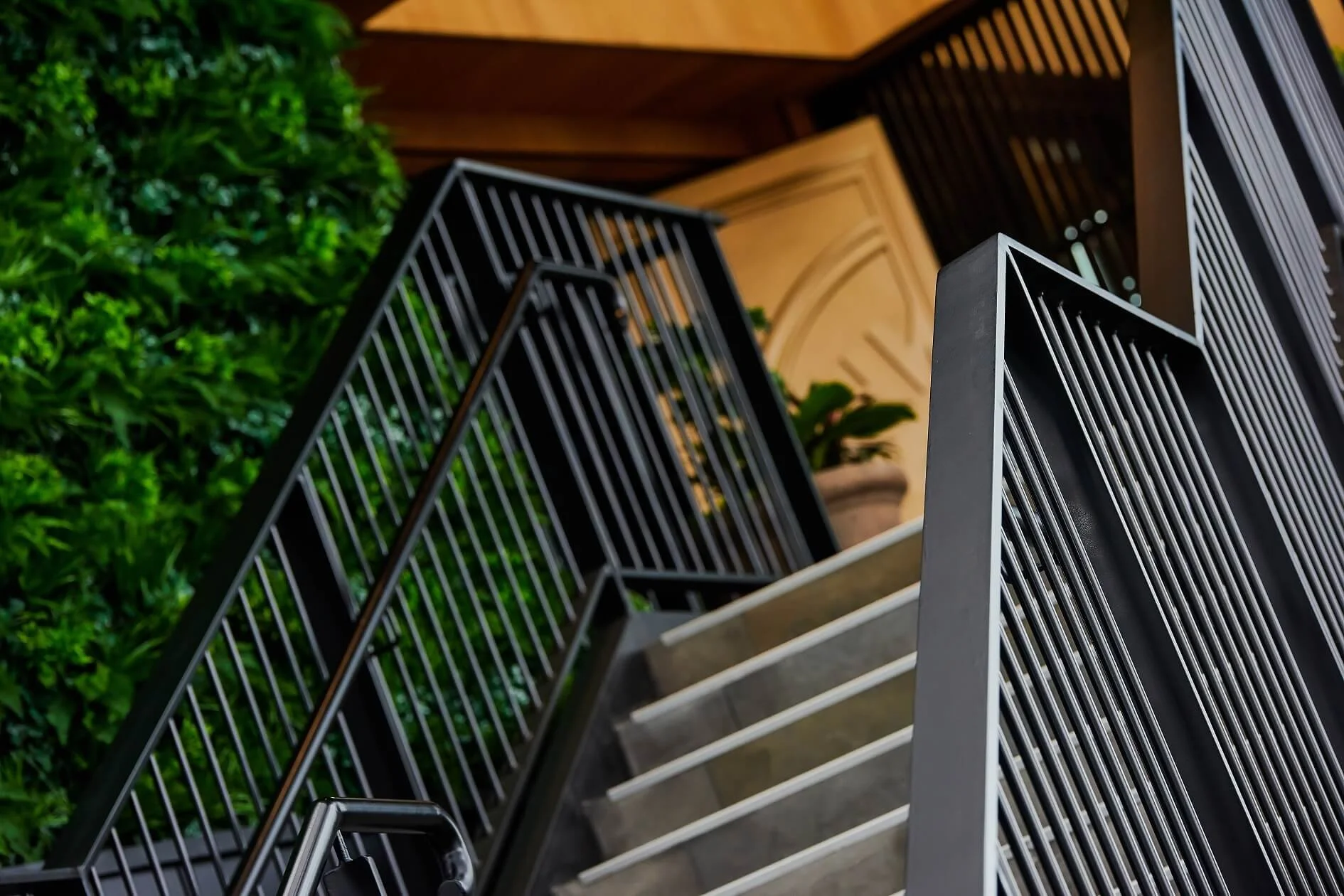

Architectural staircases
Custom balustrades and handrails
Structural architectural elements
Bespoke residential builds
High-spec commercial fit-outs
Projects with straightforward detailing can often be fabricated efficiently. Projects with highly refined detailing, concealed fixings or complex geometry usually require considerably more workshop time and installation precision.
For architects and design-focused homeowners, this is often intentional. The cleaner and more minimal the final appearance, the more hidden work is usually involved behind the scenes.
2. Tight Tolerances Increase Workshop Time
One of the biggest drivers of fabrication complexity is tolerance.
In many forms of general construction, small variations can be absorbed on site. In architectural steelwork, particularly when steel interfaces with glass, stone, timber or plaster finishes, tolerances become far tighter.
Examples include:
Floating staircases
Frameless glass balustrades
Flush steel door frames
Minimalist handrails
Integrated architectural steel features
A 2-3mm discrepancy may not sound significant, but achieving consistent tolerances across an entire project often requires:
Additional checking and measuring
More detailed shop drawings
Precision cutting and welding
Trial assembly in the workshop
Careful coordination with other trades
The result is a cleaner final product, but also a more labour-intensive process.
This is one reason why two visually similar projects can differ significantly in cost.
3. Hidden Fixings and Minimalist Design Require More Engineering
Minimalist architectural detailing is increasingly popular across Auckland homes and commercial projects. Concealed connections, floating elements and clean uninterrupted lines create striking results, but they often involve substantial unseen complexity.
For example:
Concealed handrail fixings may require custom internal brackets and precise wall preparation
Floating stair treads can involve hidden structural supports and tighter installation tolerances
Recessed steelwork may require early coordination before wall linings or cladding are installed
Invisible weld finishes require significantly more grinding and polishing time
In many cases, the less steelwork you visually see, the more work has gone into achieving that appearance.
This type of fabrication suits projects where craftsmanship and precision are valued, rather than projects driven purely by lowest-cost procurement.
4. Curves, Angles and Non-Standard Geometry Add Complexity
Straightforward fabrication is generally faster and more efficient. Once projects move into curves, compound angles or irregular geometry, complexity increases rapidly.
Common examples include:
Curved staircases
Radius handrails
Angled balustrades
Feature screens
Architectural canopies
Folded steel forms
These details often require:
Custom templates
Additional programming or setup time
Specialist bending or rolling
More intricate welding
Higher risk of rework if measurements are incorrect
Even seemingly simple angled connections can become time-consuming if multiple trades or surfaces are involved.
For design-led projects, these details are often worth the investment because they create a distinctive result that standard fabrication cannot replicate.
5. Finishes Can Significantly Affect Labour Requirements
Finishing requirements are another major factor often underestimated during early design stages.
Not all steel finishes require the same amount of preparation. For example, exposed architectural steelwork typically demands far higher finishing standards than concealed structural steel.
Some examples:
Stainless Steel
Architectural stainless steel often requires:
Consistent grain direction
Clean weld finishing
Careful handling to avoid contamination
Protection during transport and installation
High-end stainless work can involve substantial polishing and refinement time to achieve a seamless appearance.
Powder-coating
Projects requiring premium powder-coated finishes may involve:
Extensive surface preparation
Additional grinding and filling
Multiple handling stages
Coordination with external coating suppliers
Thin or minimalist sections can also be more susceptible to visible distortion during fabrication and finishing.
Exposed Welds vs Invisible Welds
Visible welds may be acceptable in industrial-style projects. In refined architectural work, welds are often blended and polished to become visually invisible.
This can dramatically increase labour hours.
6. Site Access and Installation Constraints Matter
Fabrication is only part of the process. Installation conditions can also significantly influence project cost and complexity.
Common Auckland examples include:
Difficult access sites
Steep residential sections
Multi-level builds
Tight urban construction zones
Projects requiring crane lifts
Occupied commercial spaces
Large fabricated components may need to be split into smaller sections for transport and reassembled on site. This increases both workshop and installation labour.
Projects with limited access also tend to require more planning, staging and coordination with builders and other trades.
Good fabrication companies will assess these risks early rather than treating installation as an afterthought.
7. Early Collaboration Reduces Costly Rework
One of the most effective ways to manage fabrication cost without compromising design quality is early collaboration between architect, builder and fabricator.
When steel fabricators are brought into discussions early, they can often identify opportunities to:
Simplify hidden complexity
Improve installation sequencing
Reduce unnecessary fabrication hours
Maintain the design intent while improving buildability
Avoid costly redesigns later in the project
This is particularly important for bespoke residential projects where architectural steelwork forms a major visual feature.
Late-stage design changes are one of the biggest contributors to unexpected fabrication costs. Small dimensional adjustments or revised fixing details can sometimes require substantial rework once fabrication has begun.
Learn more about planning your custom fabrication project.
8. The Difference Between Commodity Steelwork and Architectural Steelwork
Not all fabrication projects are priced the same way because not all fabrication projects are delivering the same outcome.
Commodity fabrication is typically focused on speed, function and standardisation.
Architectural fabrication often prioritises:
Precision
Visual consistency
Finish quality
Seamless detailing
Long-term durability
Collaboration with architects and builders
For discerning homeowners, architects and commercial clients, the value is often found in the refinement of the finished result and the confidence that the steelwork will integrate cleanly with the wider project.
That level of execution requires experience, systems and attention to detail throughout design, fabrication and installation. Learn more about how choosing quality metal fabrication saves you money in the long run.
9. Closing Thoughts
The most refined steelwork is often the result of careful planning, skilled fabrication and hundreds of small decisions that are largely invisible once the project is complete.
Understanding how design choices affect fabrication complexity helps clients and project teams make informed decisions early, particularly on architectural projects where precision and finish quality matter as much as structural performance.
For architects, builders and homeowners pursuing high-quality custom steelwork, the best outcomes usually come from early collaboration, realistic tolerances and a shared focus on craftsmanship from concept through to installation.
For more, see our Steel Fabrication Cost Guide for Auckland.
